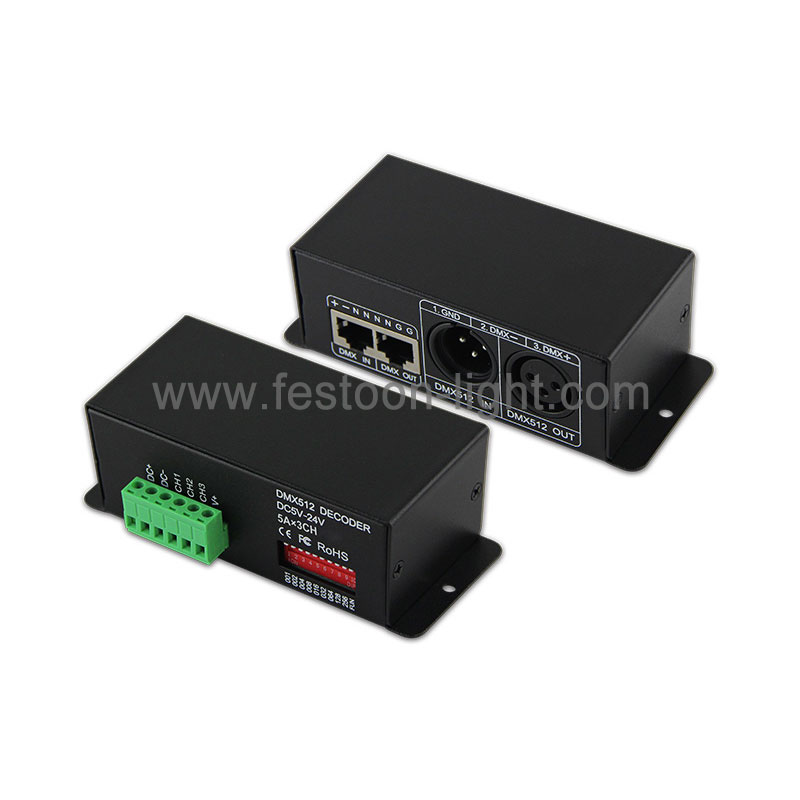

3 Channel DMX Decoder RGB with XLR-3R and RJ45

FEL-CD202 3 Channel DMX Decoder RGB with XLR-3R and RJ45 is a compact yet powerful device engineered to transform universal DMX512/1990 signals into advanced PWM (pulse-width-modulation) signals, delivering precise and dynamic control over RGB LED lighting. Designed with cutting-edge microchip technology, this decoder provides 3 output channels—each supporting a maximum load current of 5A and offering 256 brightness levels—for a total output power of 75W at 5V, 180W at 12V, or 360W at 24V. Its ability to automatically adapt to an input voltage range of DC5V-24V ensures compatibility with a wide variety of power sources, making it an adaptable choice for diverse lighting setups, from small-scale displays to more ambitious installations. The FEL-CD202 allows users to configure DMX addressing via a DIP switch, offering flexibility with up to 512 addressable channels in a system, though it directly controls 3 channels (with an optional 4th channel for shutter/strobe effects).

This decoder enhances usability with 10 built-in self-changing modes and 8 adjustable speed levels, enabling users to create captivating lighting sequences without complex programming. Connectivity is a strong suit, with support for three DMX port options—3-pin XLR, RJ45, and terminal block—allowing seamless integration with lighting consoles, analog devices, and a range of LED products such as RGB lamps, tubes, wall washers, and building lights. The power loss memory function is a practical addition, ensuring that settings are retained during power interruptions, minimizing downtime and reconfiguration efforts. Its compact design belies its robust capabilities, making it an ideal bridge between traditional DMX control systems and modern LED lighting solutions.

The FEL-CD202 is perfect for users looking to craft vibrant and customizable light shows, whether for decorative, commercial, or architectural purposes. Its straightforward operation via DIP settings, combined with high output capacity and reliable performance, caters to both beginners and seasoned lighting professionals. From illuminating indoor spaces with RGB tubes to accentuating outdoor structures with LED wall washers, this decoder unlocks endless possibilities for creative expression, delivering consistent and vivid results across compatible devices. Its blend of simplicity, power, and versatility makes it a standout choice for RGB lighting control.

Precise RGB Control: 3 channels with 256 levels each.
Flexible Voltage: Adapts to DC5V-24V automatically.
Easy Setup: DIP switch for DMX addressing.
Dynamic Effects: 10 modes with adjustable speeds.
Reliable Memory: Saves settings after power loss.
Versatile Ports: Supports XLR, RJ45, and terminal block.
Compact Power: Up to 360W for RGB lighting.

Home Decor: RGB lighting for interiors.
Retail Displays: Vibrant store accent lighting.
Outdoor Features: Wall washers for buildings.
Event Lighting: Dynamic effects for parties.
Signage: Colorful illumination for signs.
