DMX PWM Decoder for LED Strip and Tape Light

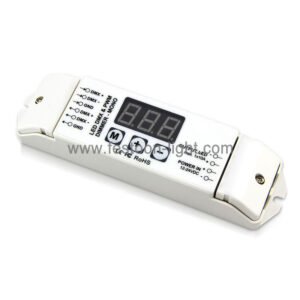

FEL-CD204 DMX PWM Decoder for LED Strip and Tape Light is a specialized device engineered to enhance the control of constant voltage LED lighting, seamlessly converting standard DMX512/1990 signals into PWM (pulse-width-modulation) outputs through advanced microcomputer technology. Tailored for LED strips and tape lights, it features a single output channel capable of handling a maximum load current of 10A, delivering power outputs of 120W at 12V or 240W at 24V. Its ability to automatically adapt to an input voltage range of DC12V-24V ensures compatibility with a variety of power supplies, making it a versatile tool for both small and medium-scale lighting applications. A standout feature is its 4096 grey scale levels per channel, paired with logarithmic dimming, which produces exceptionally soft and stable illumination without strobe flash, ideal for environments requiring consistent, flicker-free lighting.

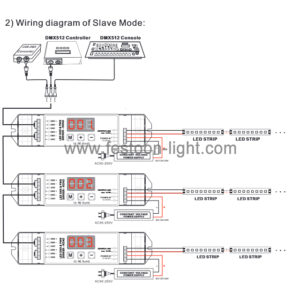

Operation is made intuitive with a 3-digit display that shows the DMX address code, allowing straightforward configuration, while an indicator provides real-time feedback on DMX512 signal reception status. The FEL-CD204 offers dual functionality as either a DMX master or slave device; in master mode, it includes 30 built-in changing modes and 10 adjustable speed scales, enabling standalone dynamic lighting effects without external control. When used as a decoder in slave mode, it connects effortlessly to digital consoles or analog silicon cases, driving LED lamps for architectural or general lighting purposes. Safety and reliability are prioritized with wrong-wiring protection at the DMX input port, overcurrent and short-circuit protection, and a power loss memory function that retains settings during outages, minimizing reconfiguration efforts. The terminal block DMX512 socket ensures secure and simple connectivity.

Whether illuminating building facades or enhancing indoor ambiance, the FEL-CD204 combines precision, flexibility, and durability in a compact design. Its high grey scale resolution, robust protective features, and dual-mode operation make it an excellent choice for lighting professionals and enthusiasts aiming to achieve smooth, reliable, and creative LED control. This decoder excels in delivering stable performance and rich lighting effects, bridging traditional DMX systems with modern LED applications effortlessly.

High Precision: 4096 grey levels for smooth light.
Versatile Voltage: Adapts to DC12V-24V inputs.

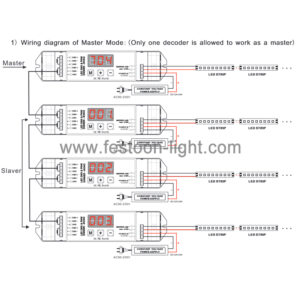

Flexible Modes: Master mode with 30 patterns.
Robust Output: 10A channel for strong performance.
Reliable Safety: Protection against wiring errors.
User-Friendly: 3-digit display for easy setup.
Memory Function: Retains settings after power loss.

Architectural Lighting: Facade or accent strips.
Home Decor: Smooth tape light ambiance.
Retail Displays: Stable lighting for showcases.
Stage Effects: Dynamic single-channel control.
Outdoor Signs: Consistent LED strip illumination.
