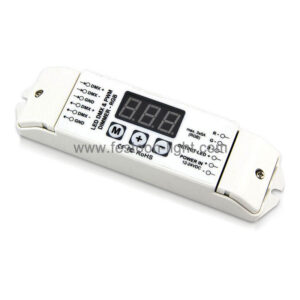

RGB DMX Decoder 3 Channel CV

FEL-CD206 RGB DMX Decoder 3 Channel CV is a precision-engineered device tailored for constant voltage LED lamps, utilizing advanced microcomputer technology to convert standard DMX512/1990 signals into PWM (pulse-width-modulation) outputs for seamless RGB lighting control. With three output channels, each capable of delivering a maximum load current of 5A, this decoder provides power outputs of 180W at 12V or 360W at 24V, making it a robust solution for a variety of lighting applications. Its ability to automatically adapt to an input voltage range of DC12V-24V ensures compatibility with diverse power setups, from compact home projects to larger architectural installations. The FEL-CD206 stands out with 4096 grey scale levels per channel and logarithmic dimming, delivering soft, stable illumination without strobe flash—perfect for environments where visual comfort and quality are paramount.

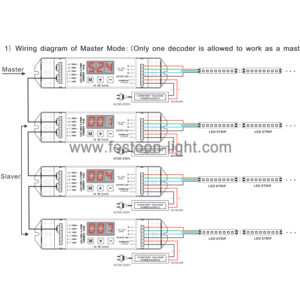

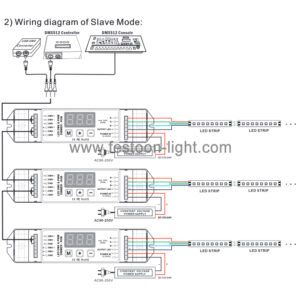

A 3-digit display simplifies operation by showing the DMX address code, while an indicator offers real-time feedback on DMX512 signal reception status, enhancing usability. The decoder’s dual-mode capability allows it to function as a DMX master or slave; in master mode, it provides 8 built-in color-changing modes and 10 adjustable speed scales for standalone dynamic effects, while in slave mode, it integrates with digital consoles or analog silicon cases to drive RGB LED lamps for architectural or general lighting. Safety features are comprehensive, including wrong-wiring protection at the DMX input port, overcurrent and short-circuit protection, and a power loss memory function that retains settings during power interruptions, minimizing reconfiguration time. The terminal block DMX512 socket ensures secure and straightforward connectivity.

The FEL-CD206 is an excellent choice for users seeking reliable and creative RGB lighting control. Its flexibility to operate with 1 to 3 channels, combined with high-resolution dimming and protective design, makes it suitable for both professional and enthusiast applications. Whether illuminating indoor spaces or enhancing outdoor displays, this decoder delivers smooth, vibrant effects, effectively bridging traditional DMX systems with modern LED technology in a compact, efficient package.

High Precision: 4096 grey levels per channel.
Flexible Voltage: Adapts to DC12V-24V inputs.
Dynamic Control: 8 modes, 10 speeds in master.
Reliable Power: 5A per channel for RGB.
Safe Operation: Protection against wiring errors.
Easy Configuration: 3-digit DMX address display.

Home Lighting: RGB ambiance for rooms.
Commercial Displays: Vibrant store lighting effects.
Architectural Accents: Soft LED strip highlights.
Event Stages: Dynamic color-changing setups.
Outdoor Decor: Stable RGB lighting control.
