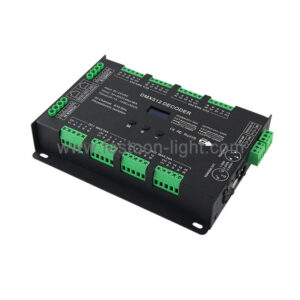

32 Channel DMX Decoder Constant Voltage CV Controller

FEL-CD201 32 Channel DMX Decoder Constant Voltage CV Controller is a state-of-the-art device crafted exclusively for constant voltage LED lamps, employing advanced microcomputer control technology to seamlessly transform DMX512/1990 signals into PWM signals for precise and versatile lighting management. Boasting 32 output channels, each capable of a maximum load current of 3A (up to 96A total), this decoder delivers formidable power output—ranging from 480W at 5V to 1152W at 12V and peaking at 2304W at 24V. Its broad input voltage range of DC5V-24V ensures compatibility with a variety of power setups, making it an adaptable solution for both small-scale and expansive lighting projects. The FEL-CD201 excels in controlling single-color, color temperature, RGB, and RGBW LED lamps, offering four switchable control modes (DIM, CT, RGB, RGBW) to cater to a wide array of lighting requirements.

User interaction is streamlined through an OLED screen and tactile touch buttons, providing an intuitive interface for effortless configuration. It supports selectable 8-bit (256 grey levels) or 16-bit (65536 grey levels) decoding for superior resolution and smooth transitions, paired with adjustable output frequencies (1K, 2K, 4K, 8K) to optimize performance across applications. The decoder features three DMX port options—3-pin XLR, RJ45, and green terminal block—all equipped with signal isolation and amplification functions to maintain robust signal integrity in complex setups. The integration of the RDM (Remote Device Management) protocol enhances its capabilities, allowing remote operations such as parameter browsing, DMX address setting, and equipment recognition via an RDM master console—a feature that streamlines professional lighting management.

The FEL-CD201 also offers flexible dimming options, including standard, linear, LOG, or custom 0.1-9.9 curves, enabling tailored lighting effects. A power-off data-saving function preserves settings during outages, reducing setup time post-interruption. Ideal for applications ranging from theatrical stages to commercial displays, this decoder combines high channel capacity, advanced control features, and dependable design, making it a vital tool for lighting professionals and enthusiasts seeking precision and scalability in constant voltage LED systems. Its comprehensive functionality and user-centric design position it as a premier choice for sophisticated lighting control.

Extensive Capacity: 32 channels for large-scale lighting.
Simple Operation: OLED screen with touch controls.
Precision Control: 256 or 65536 grey levels offered.
Remote Access: RDM for convenient parameter settings.
Multi-Mode Support: Handles DIM/CT/RGB/RGBW modes.
Reliable Ports: Isolated DMX with amplification.
High Power: Up to 2304W for robust needs.

Stage Lighting: Multi-channel effects for performances.
Commercial Displays: RGBW lighting for retail spaces.
Architectural Features: Precision control for exteriors.
Event Venues: Dynamic setups for shows or events.
Custom Projects: Flexible control for creative designs.
