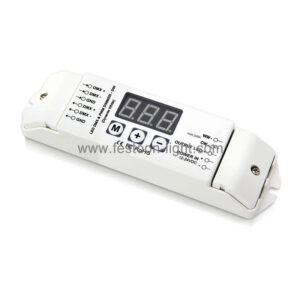

LED DMX Decoder 2 Channel Constant Voltage Master Slave

FEL-CD205 LED DMX Decoder 2 Channel Constant Voltage Master Slave is a meticulously designed device that brings precise and versatile control to constant voltage LED lighting systems, leveraging advanced microcomputer technology to transform standard DMX512/1990 signals into PWM (pulse-width-modulation) outputs. Engineered specifically for LED lamps, it features two output channels, each capable of handling a maximum load current of 8A, delivering power outputs of 192W at 12V or 384W at 24V. Its automatic adaptation to an input voltage range of DC12V-24V ensures compatibility with a diverse array of power supplies, making it suitable for a wide range of applications, from modest setups to more demanding lighting projects. The FEL-CD205 offers 4096 grey scale levels per channel with logarithmic dimming, producing soft, stable illumination free of strobe flash—an essential feature for environments requiring consistent and comfortable lighting.

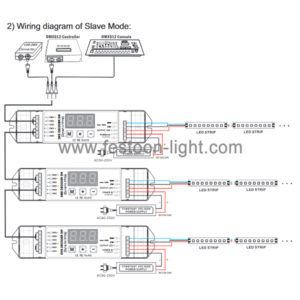

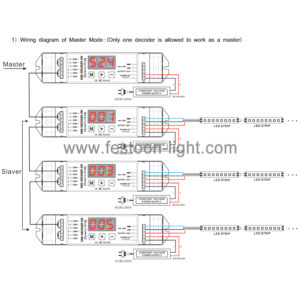

Ease of use is enhanced by a 3-digit display that clearly shows the DMX address code, simplifying configuration, while an indicator provides real-time feedback on DMX512 signal reception status. The decoder’s dual-mode functionality—operating as either a DMX master or slave—adds significant flexibility; in master mode, it includes 4 built-in color-changing modes and 10 adjustable speed scales for standalone dynamic effects, while in slave mode, it integrates seamlessly with digital consoles or analog silicon cases to control architectural and general lighting LEDs. Safety is a priority, with wrong-wiring protection at the DMX input port, overcurrent and short-circuit protection, and a power loss memory function that preserves settings during outages, reducing downtime. The terminal block DMX512 socket ensures secure and straightforward connectivity.

Whether enhancing indoor aesthetics or illuminating outdoor structures, the FEL-CD205 combines high-resolution control, robust safety features, and operational versatility in a compact form. Its ability to switch between 1 or 2 channels, paired with its protective design and dual-mode capabilities, makes it an ideal solution for lighting professionals and enthusiasts seeking reliable and creative LED control. This decoder excels in delivering smooth, vivid lighting effects, bridging traditional DMX systems with modern LED technology effortlessly.

High Resolution: 4096 grey levels per channel.
Flexible Voltage: Adapts to DC12V-24V inputs.
Dual Functionality: Master mode with 4 patterns.
Strong Output: 8A per channel for power.
Reliable Design: Protection and memory features.
Easy Setup: 3-digit display for addressing.
Versatile Control: Supports 1 or 2 channels.

Interior Lighting: Soft ambiance for homes.
Architectural Features: Stable LED strip accents.
Retail Displays: Dynamic lighting for shops.
Event Decor: Color-changing effects for venues.
Outdoor Lighting: Reliable control for exteriors.
